Shop Premises Regent St. Hawera for Mr J. Sheehan [plans]
Production date
1934-1935
Description
Architectural plans for a commercial premises located on Regent Street in Hāwera. Created by architects Duffill and Gibson for J. Sheehan between 1934 and 1935.
See full details
Object detail
Folder

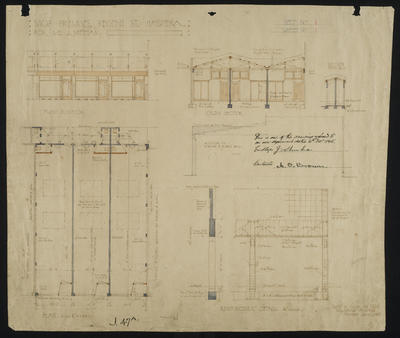

1. S7 Contract plan showing floor plan, front elevation, cross section and reinforcement details. Contract signed top right quadrant by J. Sheehan and A. Brown (contractor), dated 16 December 1935. Plan dated June 1935. 'Set No.1 Sheet No.1' written in top right quadrant. 'J47A' written in bottom left quadrant. Scale 1/8 and 1/4 inch to 1 foot.
2. S7.1 Contract plan showing existing floor plan and details. Contract signed top center by J. Sheehan and A. Brown (contractor), dated 16 December 1935. Plan dated December 1935. 'Set No.1 Sheet No.2' written in top right quadrant.
3. S7.2 1/2 inch scale details of shopfront. Dated 18 April 1934. 'Office Copy' written in top right quadrant. 'J47A' written in top and bottom left quadrants.
4. S7.3 Contract plan showing floor plan, elevations, sections and details of verandah. Contract signed top center by J. Sheehan and E. Pacey (contractor), dated 8 March 1934. Plan dated February 1934. 'J47A' written in bottom left and right quadrants.
